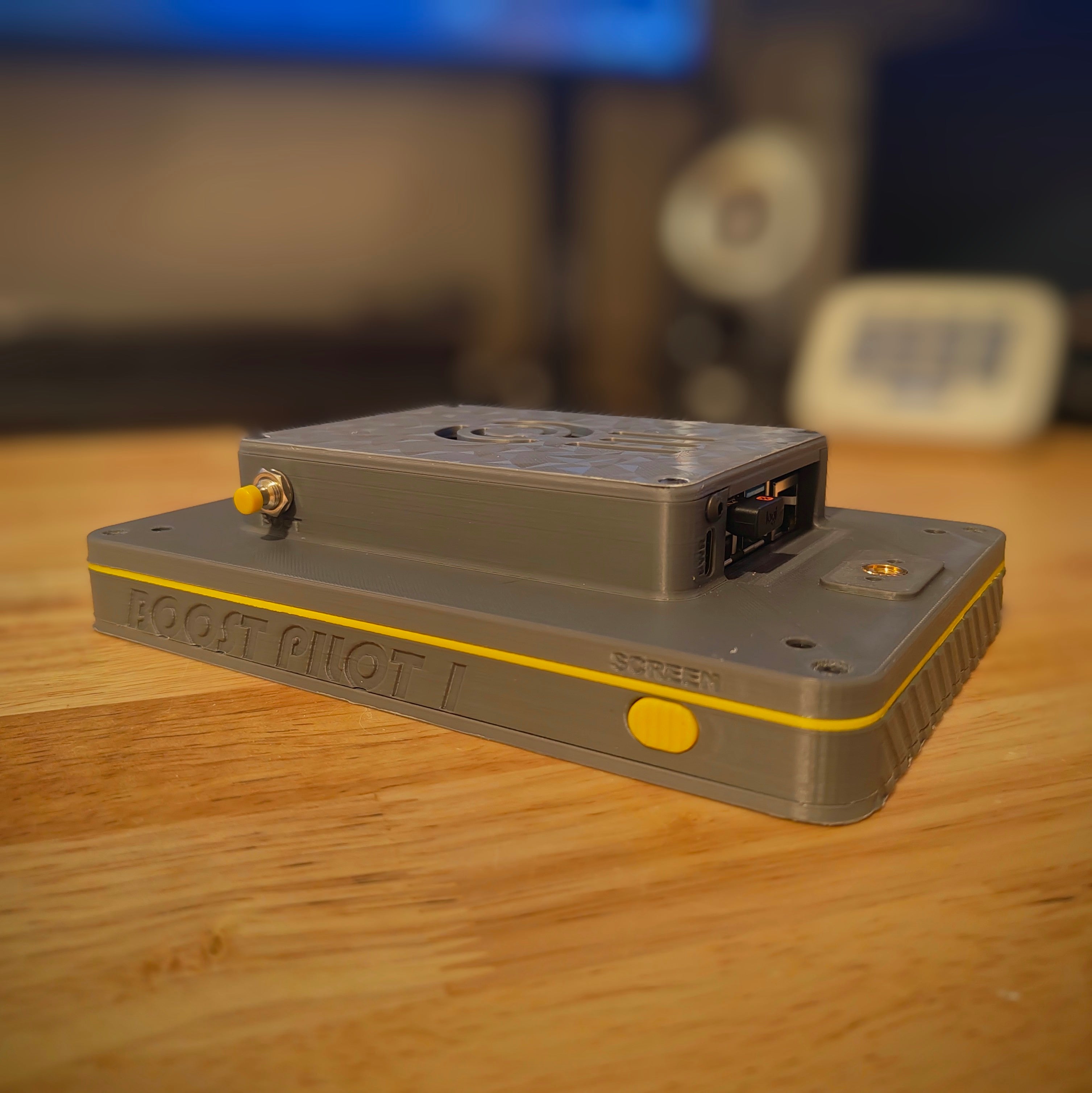

Introducing the Boost Pilot 1

All-In-One ECU Tuning and Monitoring Display

The Boost Pilot 1 is a dedicated in-vehicle ECU tuning and monitoring display that delivers the full functionality of a laptop in a clean, purpose-built form factor. Designed for both enthusiasts and professionals, it provides real-time data monitoring and full ECU tuning control directly from the screen.

Features

  • 7-inch dimmable touchscreen display

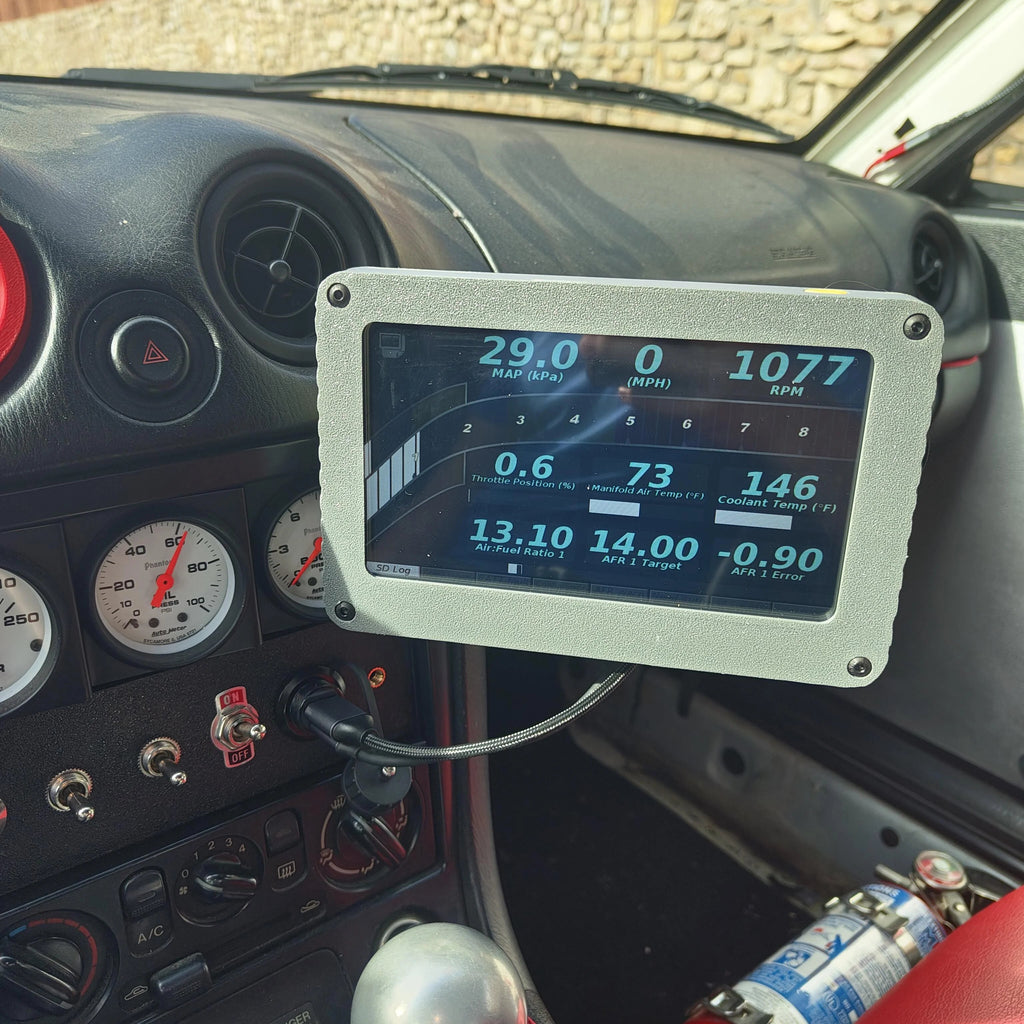

  • Fully customizable sensor readout dashboard

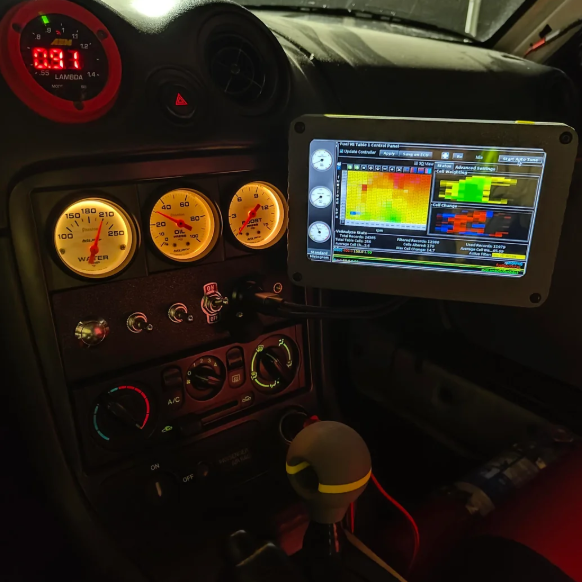

  • Full ECU tuning capability directly from the device

  • Preloaded with TS Dash (user account registration required)

  • Four USB ports for expanded connectivity

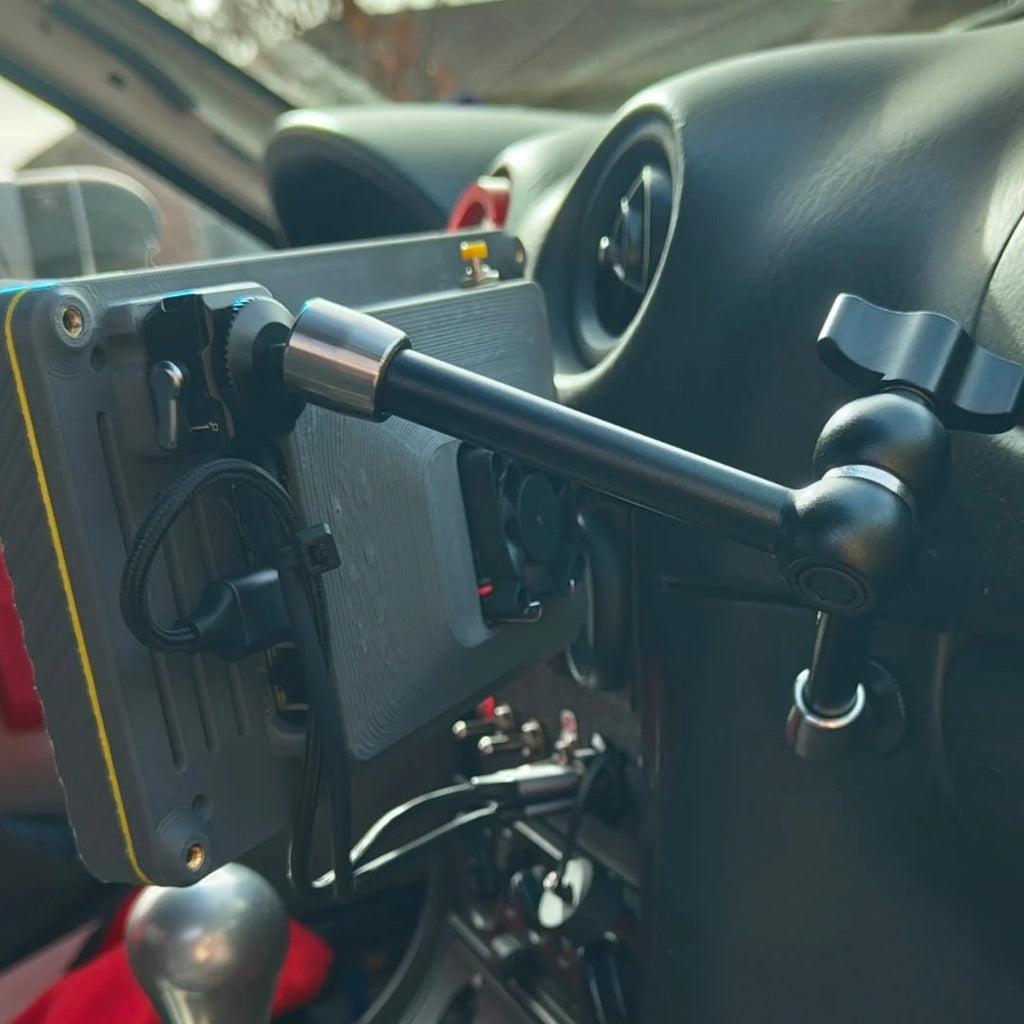

  • Compatible with RAM mounts and most camera mounting systems

  • Performs all core functions of a laptop used for ECU tuning

  • Designed and assembled in the USA

Package Contents

  • 1 × Boost Pilot 1

  • 1 × 12V to 5V power supply

  • 1 × SmallRig camera quick-disconnect mount

  • 1 × RAM mount ball

  • 1 × Toggle switch

ECU Compatibility

The Boost Pilot 1 is compatible with any ECU that utilizes TunerStudio as its tuning software.

Confirmed compatibility includes:

  • MegaSquirt ECUs

  • Speeduino ECUs

Account Registration Notice

TS Dash account registration requires a one-time Ethernet connection during initial setup. Connect an Ethernet cable and keyboard, complete the registration process, save your settings, and then disconnect the cable. An Ethernet connection is not required after registration.

If prompted to update TS Dash, you may proceed with the update. Do not update TunerStudio on the device.

Important: This registration process is separate from standard TunerStudio registration. Please refer to the provided link for additional information.

Warnings

  • The boot button must be pressed before disconnecting power. Failure to do so may result in the operating system being erased.

  • Updating TunerStudio when prompted is not recommended.

Additional Information

  • Lead times may be 3–4 weeks, depending on demand. Please contact us for a more accurate estimate.

  • Product appearance may vary slightly from photos due to ongoing design improvements.

  • As each unit is made to order, products are non-returnable and non-refundable once ordered.
